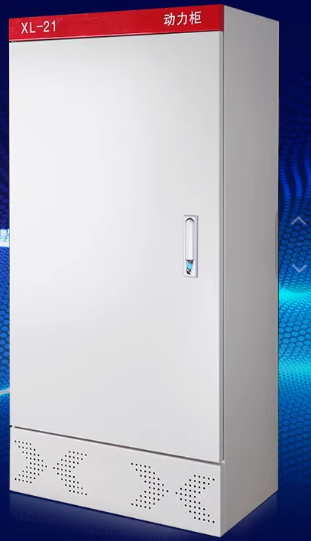

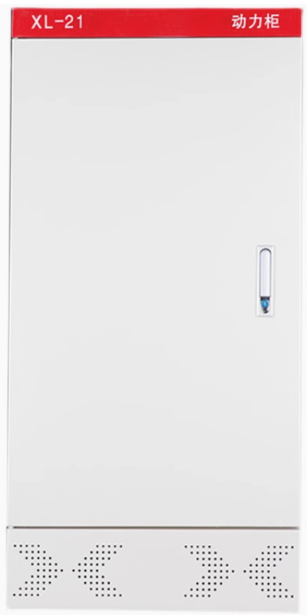

XL-21 & GGD Series Low Voltage Power Distribution

XL-21 & GGD Series: The Foundation of Safe and Efficient Power Distribution

The XL-21 and GGD Series Low Voltage Power Distribution, Lighting, and Motor Control Cabinets are engineered to be the core workhorses of electrical distribution networks. Designed for versatility, durability, and uncompromising safety, these cabinets cater to a wide spectrum of applications, from factory floors and power plants to commercial buildings, water treatment facilities, and outdoor infrastructure projects.

Core Functionality:

• Power Distribution: Primary function is receiving incoming electrical power (typically 400V AC 3-phase + N or similar low voltage standards) via a main circuit breaker or switch-disconnector and distributing it to multiple outgoing feeder circuits.

• Lighting Control: Dedicated sections or entire cabinet configurations are optimized for distributing and controlling lighting circuits, often incorporating features like timer controls or contactors for large lighting loads.

• Motor Control: Equipped to house motor starters (Direct-On-Line, Star-Delta, Soft Starters, Variable Frequency Drives - VFDs) for controlling pumps, fans, conveyors, and other machinery. The XL-21 is particularly known for its motor control applications.

• Circuit Protection: Integrates various protective devices like Molded Case Circuit Breakers (MCCBs), Miniature Circuit Breakers (MCBs), Fuses, and Residual Current Devices (RCDs)/Earth Leakage Circuit Breakers (ELCBs) to safeguard circuits, equipment, and personnel against overloads, short circuits, and earth faults.

• Isolation & Switching: Provides safe isolation points (isolators, switch-disconnectors) for maintenance and emergency shutdowns.

• Monitoring & Metering (Optional): Can incorporate energy meters, current transformers (CTs), voltage indicators, and communication modules for power monitoring and control system integration (SCADA, BMS).

Key Design & Construction Features:

1. Robust Enclosure:

• Enhanced sealing (double lip door gaskets).

• Roof overhangs or sloping tops to prevent water ingress and accumulation.

• Corrosion-resistant materials/stainless steel hardware.

• High IP Ratings: Typically IP54 (dust protected & protected against water splashes from any direction) or IP55 (dust protected & protected against low-pressure water jets) for reliable outdoor performance.

• UV-resistant coating options.

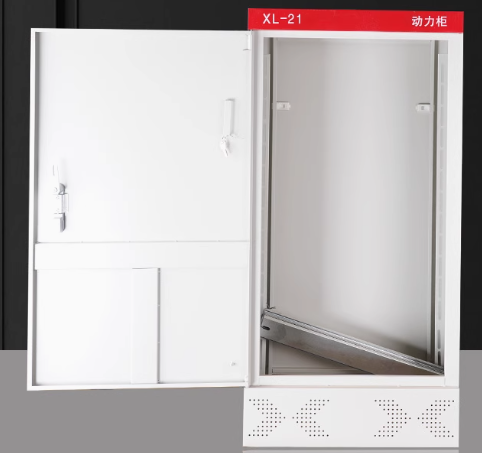

• Frame: Constructed from high-quality, cold-rolled steel sheet with a rigid welded or bolted frame structure ensuring exceptional mechanical strength and resistance to impact and vibration.

• Doors: Full-height, hinged doors with robust locks (often padlockable) and continuous hinges. Doors feature high-quality seals.

• Surface Treatment: Electrostatic epoxy powder coating applied after thorough phosphating pretreatment. Standard RAL 7035 (Light Grey) or customizable. This provides excellent corrosion resistance, crucial for industrial environments and outdoor installations.

• Indoor/Outdoor Versatility: Standard models suitable for indoor use (IP30, IP41). Specialized versions available for outdoor installation featuring:

2. Internal Structure & Compartmentalization (Form):

• Form 1: No internal separation.

• Form 2b: Separation between busbars and functional units.

• Form 3b: Separation between busbars and functional units + separation between functional units (partial).

• Form 4b: Full separation between all functional units and between functional units and busbars (highest level of internal separation).

• Form 1, 2b, 3b, 4b (IEC 61439): Available in various internal separation forms to meet safety requirements for isolation, prevention of contact with live parts, and limitation of fault propagation. Common forms include:

• Modular Design: Utilizes standardized vertical sections and horizontal busbar chambers. Functional units (circuit breakers, starters, meters) are typically mounted on a rigid, plated mounting plate or frame. This modularity allows for easy configuration, expansion, and component replacement.

• Busbar System: High-conductivity, tin-plated copper busbars (main horizontal bus and vertical risers) sized according to rated current. Connections are bolted, ensuring low resistance and heat generation. Adequate phase separation and clearances are maintained.

• Cable Entry: Multiple knockouts or pre-cut entries at the top and bottom of the cabinet for easy cable routing. Options include cable glands, cable plates, or bushing plates. Dedicated neutral (N) and protective earth (PE) bars are provided with ample terminals.

3. Component Integration & Flexibility:

• Designed to accommodate industry-standard components from major manufacturers (Schneider Electric, Siemens, ABB, Eaton, Chint, etc.) – MCCBs, MCBs, Contactors, Overload Relays, Fuse Switches, VFDs, Meters, etc.

• Flexible internal layout allows for customization based on specific project requirements (mix of power feeders, lighting circuits, motor starters).

• Ample space for wiring, ensuring neatness, ease of termination, and proper heat dissipation.

• Ventilation options (louvers, fans – often with filters) for heat management in high-load scenarios.

4. Safety & Compliance:

• Primary Standard: Designed and type-tested according to IEC 61439-1 & IEC 61439-2 (Low-voltage switchgear and controlgear assemblies). This certification guarantees performance under normal and short-circuit conditions, dielectric properties, temperature rise limits, mechanical operation, and protection against electric shock.

• Short Circuit Rating (Icw/Ics): Rated for specific short-time withstand current (Icw) and service short-circuit breaking capacity (Ics) for the assembly, ensuring safety during fault conditions.

• Degree of Protection (IP Code): Clearly defined ingress protection (e.g., IP30, IP41, IP54, IP55) against solid objects and water.

• Internal Arc Classification (Optional - IAC): Higher-end models may offer internal arc fault containment (e.g., IAC AFLR) to protect personnel and adjacent equipment in the rare event of an internal arc flash.

• Clear Marking & Labeling: Comprehensive, durable labels for circuit identification, warning signs, and ratings.

Applications:

• Industrial Plants (Manufacturing, Processing)

• Commercial Buildings (Office Blocks, Shopping Malls, Hospitals)

• Infrastructure Projects (Water & Wastewater Treatment Plants, Pumping Stations)

• Power Generation & Substations (Auxiliary Power Distribution)

• Mining and Quarrying

• Oil & Gas Facilities

• Transportation Hubs (Airports, Railway Stations)

• Outdoor Lighting Control (Street Lighting, Park Lighting, Stadium Lighting)

• Building Site Temporary Power Distribution

• Data Center Support Power

Advantages:

• High Reliability & Durability: Robust construction ensures long service life in harsh environments.

• Enhanced Safety: Compliance with IEC 61439 standards guarantees safe operation and protection for personnel and equipment.

• Versatility: Suitable for power distribution, lighting control, and motor control applications, both indoors and outdoors.

• Flexibility & Customization: Modular design allows tailoring to specific project needs.

• Ease of Installation & Maintenance: Well-organized internal layout, accessible components, and clear labeling simplify setup and servicing.

• Cost-Effective: Provides a robust and certified solution at a competitive price point, minimizing downtime and lifecycle costs.

• Wide Compatibility: Accommodates components from leading global electrical manufacturers.

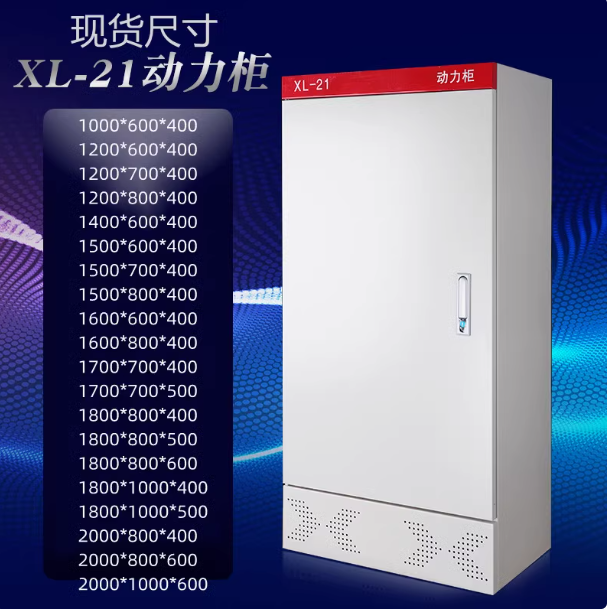

Typical Technical Specifications (Table):

Installation & Maintenance:

• Installation must be performed by qualified electricians following local electrical codes and regulations, alongside the manufacturer's instructions.

• Ensure proper foundation/floor mounting, adequate clearances for ventilation and operation, and correct cable sizing/termination.

• Regular maintenance includes visual inspections (for damage, corrosion, loose connections), checking tightness of electrical connections (torque check), verifying operation of protective devices, and cleaning ventilation paths/filters.

• Always isolate the cabinet completely from all power sources before performing any internal work.

Conclusion:
The XL-21 and GGD Series Power Distribution and Control Cabinets offer a robust, safe, and versatile solution for managing low-voltage electrical power across diverse applications. Their adherence to international standards (IEC 61439), rugged construction suitable for challenging environments (including outdoor use with IP54/IP55), and flexible design for integrating power distribution, lighting control, and motor starting functions make them a trusted choice for engineers, contractors, and facility managers worldwide. Whether powering a factory line, controlling municipal lighting, or managing pumps in a remote location, these cabinets provide the reliability and safety essential for modern electrical infrastructure.
