PLC-250705
Wonder
YDPLC-250705
Availability: | |
---|---|
Quantity: | |

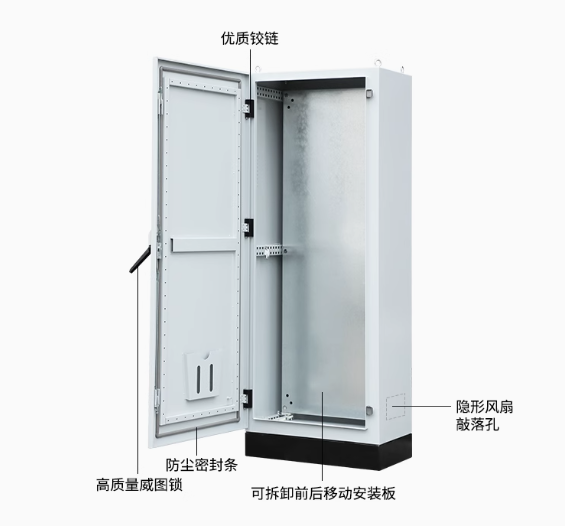

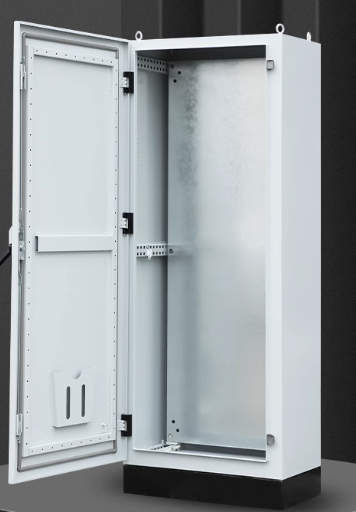

Crafted from 2mm galvanized steel or 304 stainless steel (IP54/IP65 options), our panels feature:
Modular Compartments: Isolated sections for PLCs, breakers, and busbars prevent interference.
Thermal Management: Integrated cooling channels + forced-air options (ΔT < 30°C at full load).
Cable Management: Vertical/horizontal DIN rails with 35mm cable glands (EMI-shielded).
Table: Structural Specifications
Component | Standard | Premium Upgrade |
---|---|---|
Enclosure Material | Galvanized Steel (2mm) | Stainless Steel 304 (2.5mm) |
IP Rating | IP54 | IP65/67 (NEMA 4X) |
Busbar Current | 1000A (Cu-Ag alloy) | 5000A (Electroplated Cu) |
Coating | RAL 7035 (Anti-corrosive) | Powder-coated + Ceramic Seal |
Multi-Platform Support: Siemens S7, Allen-Bradley ControlLogix, Schneider M580 (hot-swappable slots).
Real-Time Monitoring: Embedded IoT gateways for Modbus TCP, Profinet, EtherNet/IP.
Predictive Analytics: AI-driven fault detection (e.g., arc flash prediction >98% accuracy).
Protection Systems:
Magnetic-hydraulic circuit breakers (Icu=100kA)
Class II surge arrestors (40kA impulse)
Fire-resistant barriers (IEC 61439-2 certified)
Global Certifications: UL 508A, CE, IEC 61439, RoHS 3.
Sensor Network:
Temperature: ±1°C PT100 RTDs
Energy: Class 0.5S MID meters
Vibration: MEMS accelerometers
Dashboard: Web-based HMI with OPC UA/MTConnect compatibility.
Dynamic Load Balancing: Auto-adjusts phases within 20ms to maintain PF >0.95.
Peak Shaving: Battery/Supercap integration cuts grid demand by 25%.
Carbon Reporting: ISO 50001-compliant analytics (kWh/ton output).
Configuration Options:
Voltage: 400V AC to 690V AC / 1000V DC
Topology: Radial, ring-main, dual-fed
Lifecycle Support:
Remote firmware updates
Augmented Reality (AR) maintenance guides
10-year warranty (extendable)
