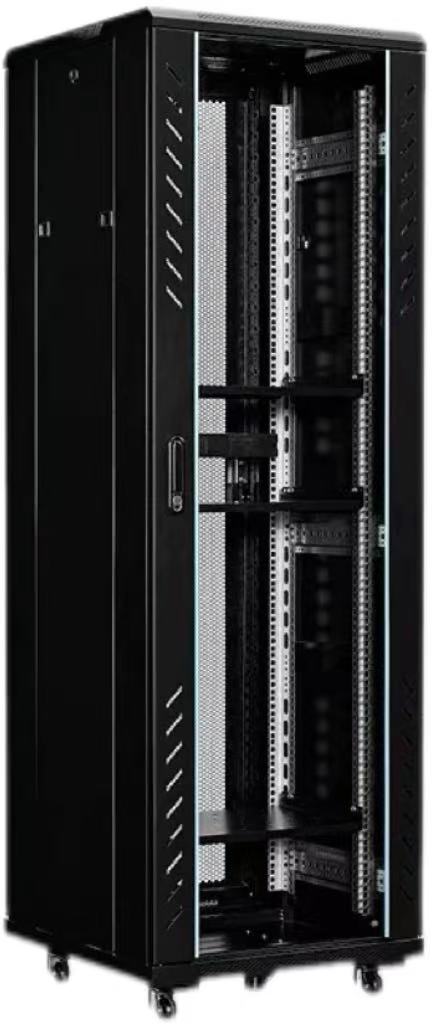

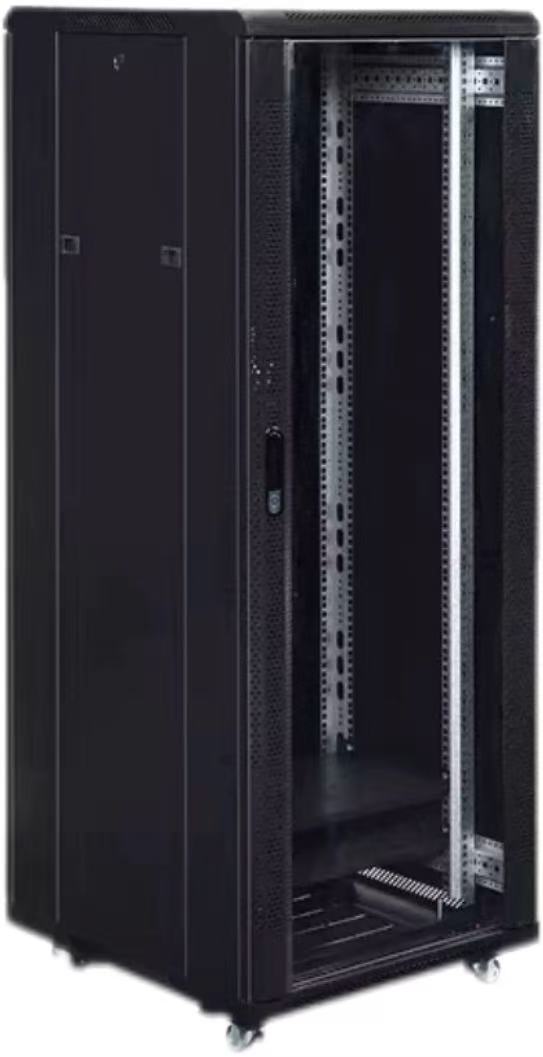

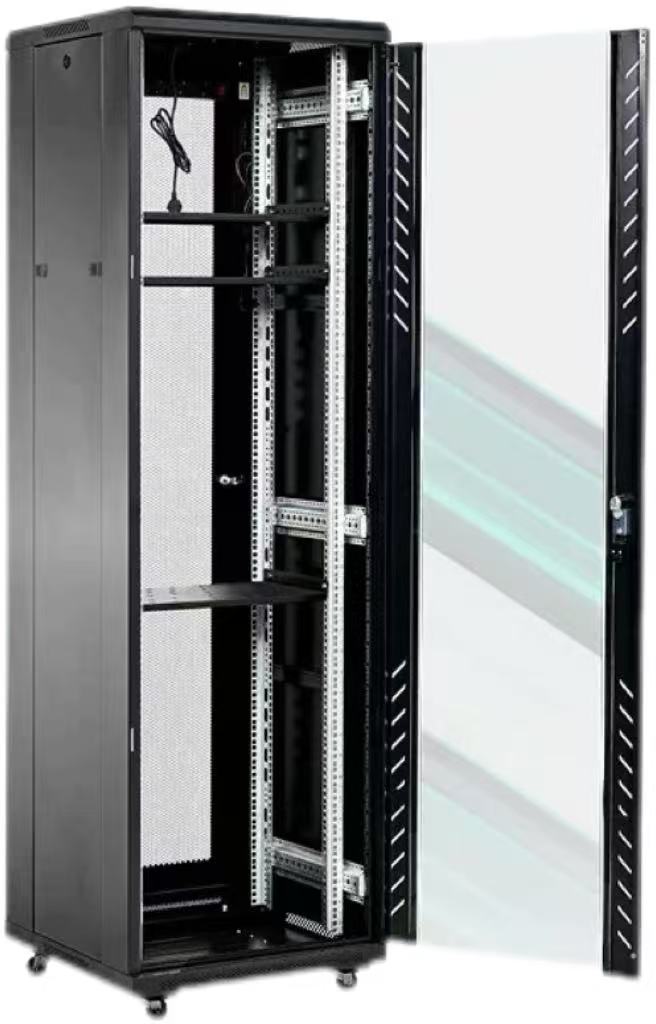

I. Technical Specifications
Parameter Specification
Dimensions 16U (28" H) × 19" W × 36" D
Material 1.2mm SGCC steel (corrosion-resistant)
Weight Capacity 550 lbs (250kg) dynamic load
Cooling 6× 80mm PWM fans (hot-swappable)
Front/Rear Perforated panels (78% open area)
Color Matte black powder coating
II. Core Features (Bullet Points)
✅ Tool-Less Design
Slide-out motherboard trays with quick-release latches
Tool-free drive bays (supports 24× 2.5"/3.5" HDD/SSD)
Snap-in PCIe retention system
✅ Thermal Optimization
Airflow Architecture: Front-to-rear directional cooling
Fan Zones: 3 independent speed-controlled groups
Cooling Options: Support for liquid cooling passthrough
✅ Security & Compliance
Lockable front/rear panels (ISO 7779 certified)
EMI shielding meets FCC Part 15 Class A
Vibration damping mounts (tested to MIL-STD-810G)
✅ Cable Management
Vertical routing channels with Velcro straps
Rear brush grommets (32 cable ports)
Grounded cable trays
III. Compatibility Matrix
Component Type Supported Standards
Motherboards E-ATX, ATX, microATX, Mini-ITX
PSUs Dual CRPS/ATX (2000W max)
Racks 19" 4-post (600/800mm depth)
PCIe Devices 8× full-height slots (16" cards)
IV. Application Scenarios
Data Centers: Cloud server clusters, NAS storage arrays
Broadcast Studios: Video rendering farms, audio processing units
Industrial IoT: Edge computing nodes, PLC control systems
Performance Chart Note: 16U chassis reduces deployment time by 40% vs. 4U stack solutions (based on 2023 Tolly Group benchmark)
Page Title
16U Black Server Rack Chassis | Enterprise Server Enclosure | RackSolutions®
Page Keywords
buy 16U rack chassis, black server cabinet price, industrial rack enclosure, custom server case, data center rack solutions, deep server chassis, rackmount case with cooling
Page Description (Meta)
Professional-grade 16U black rack chassis for mission-critical deployments. Features tool-less maintenance, 550lb capacity, and optimized cooling. Ideal for data centers, labs, and industrial applications. Request quote or datasheet.
Additional Components
Accessory Table
Optional Add-ons Part Number
Redundant PSU Kit RS-PSU2000R
Slide Rail System (100kg) RS-RAIL36
Soundproof Panels RS-SP16B
Technical Support Callout
Customization Service: OEM/ODM available (front logos, modified depths)
Lifetime Warranty: Frame integrity guarantee
