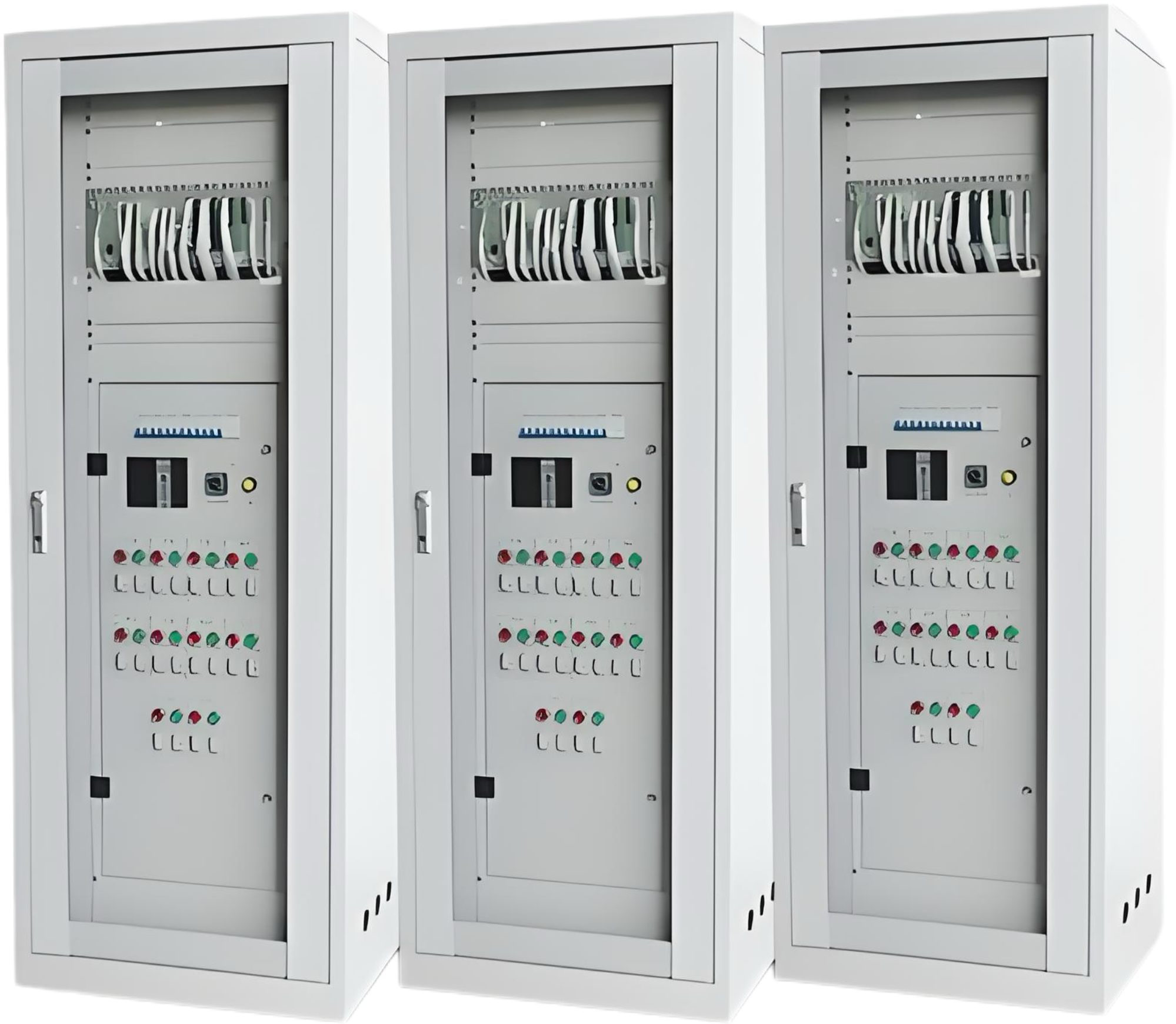

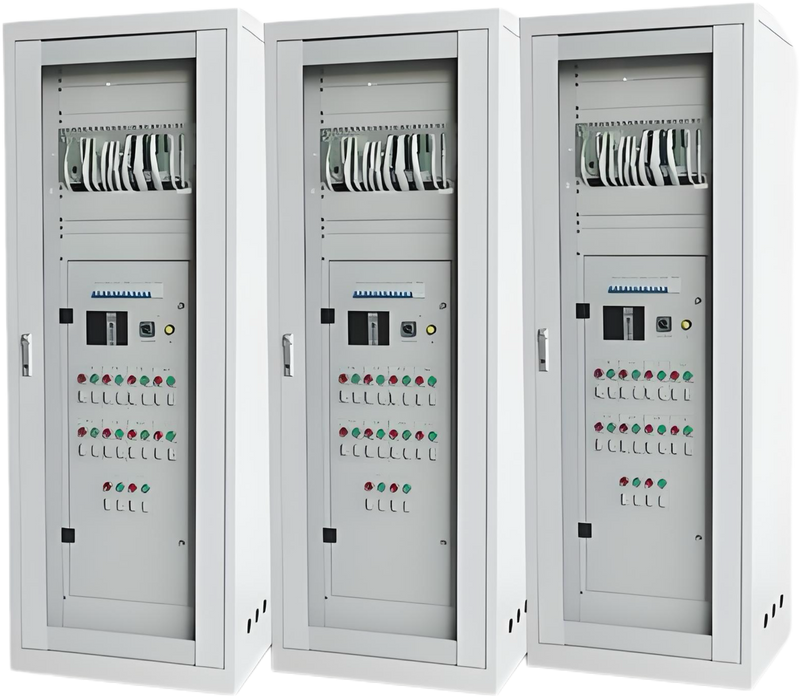

DTU Intelligent Electrical Control Cabinet

The DTU Intelligent Electrical Control Cabinet is an automated control device designed for power distribution systems. It integrates data acquisition, remote monitoring, fault protection, and communication management into a single unit. Featuring a modular design and customizable configurations, it is suitable for substations, industrial parks, renewable energy power generation, and other scenarios, ensuring stable and efficient operation of power systems.

Key Features:

Real-time data acquisition and transmission (supports 4G/Ethernet/fiber-optic communication)

Multiple protection mechanisms against overload, short circuit, and leakage

Compatibility with SCADA, EMS, and other energy management systems

High protection rating (IP55/IP65), suitable for harsh environments

Availability:

Quantity:



Inquire Add to Basket

DTU Cabinet Distribution Terminal Unit Intelligent Electrical Cabinet Industrial Automation Control Panel Power Monitoring System

Product Description

Parameter	Specification
Material	Cold-rolled steel or stainless steel (optional)
Material Thickness	1.5–2.5 mm (adjustable based on environmental requirements)
Internal Layout Standard	IEC 61439 / IEC 62271 (compliant)
Integrated Components	RTU, smart meters, communication modules
Communication Protocols	Modbus (RTU/TCP), IEC 61850, DNP3, others (customizable)
Protection Level	IP54 (standard), higher grades (IP65/IP66) available
Operating Temperature	-25°C to +70°C (wider ranges optional)
Applications	Urban power distribution, photovoltaic stations, rail transit, industrial grids
Key Features	Real-time monitoring, remote control, fault detection, smart grid integration
Dimensions (Typical)	Customizable (e.g., 800×600×2000 mm)
Weight	Varies by material (e.g., 100–300 kg)
