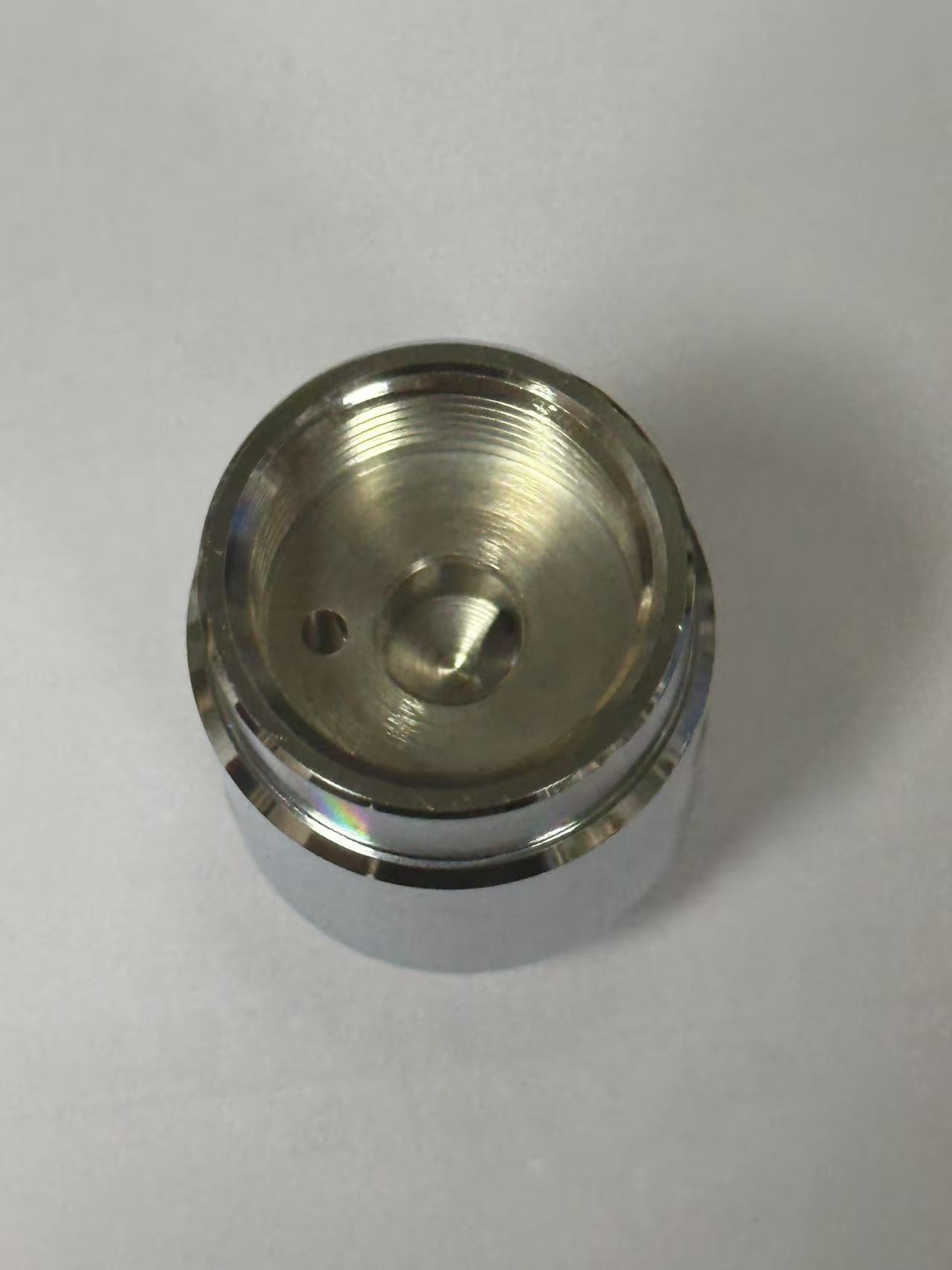

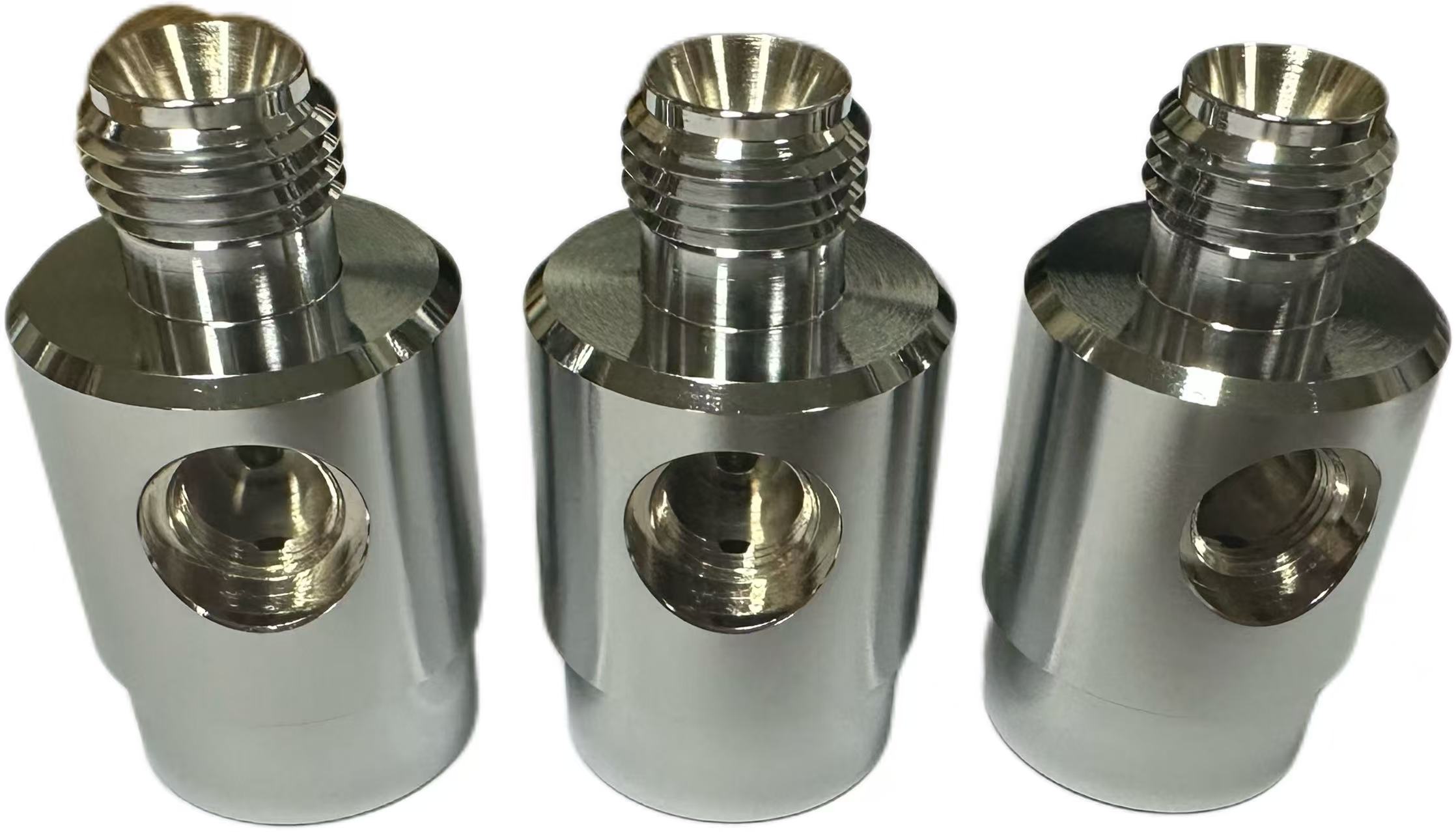

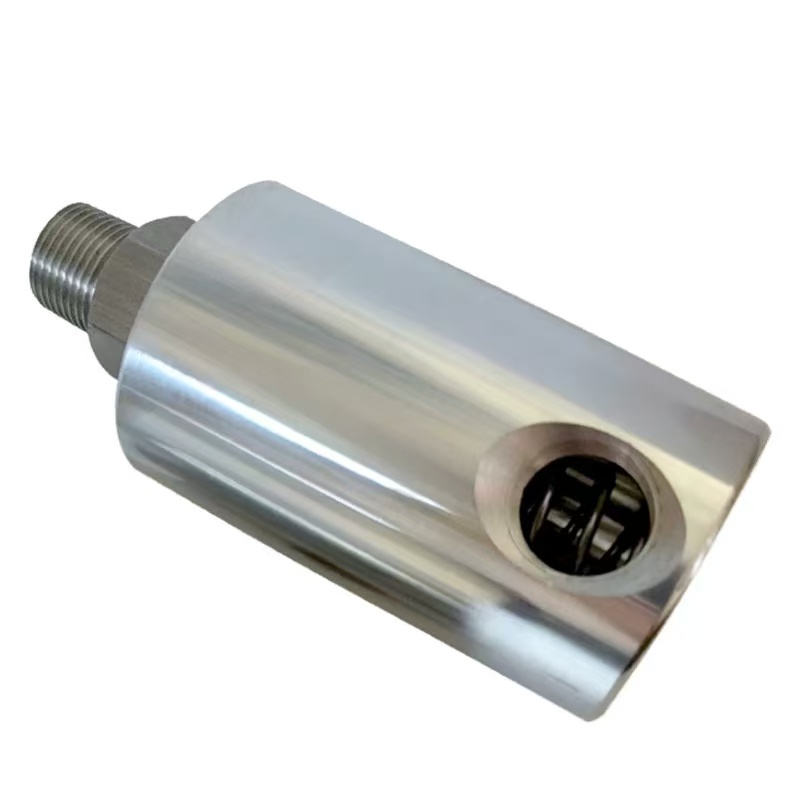

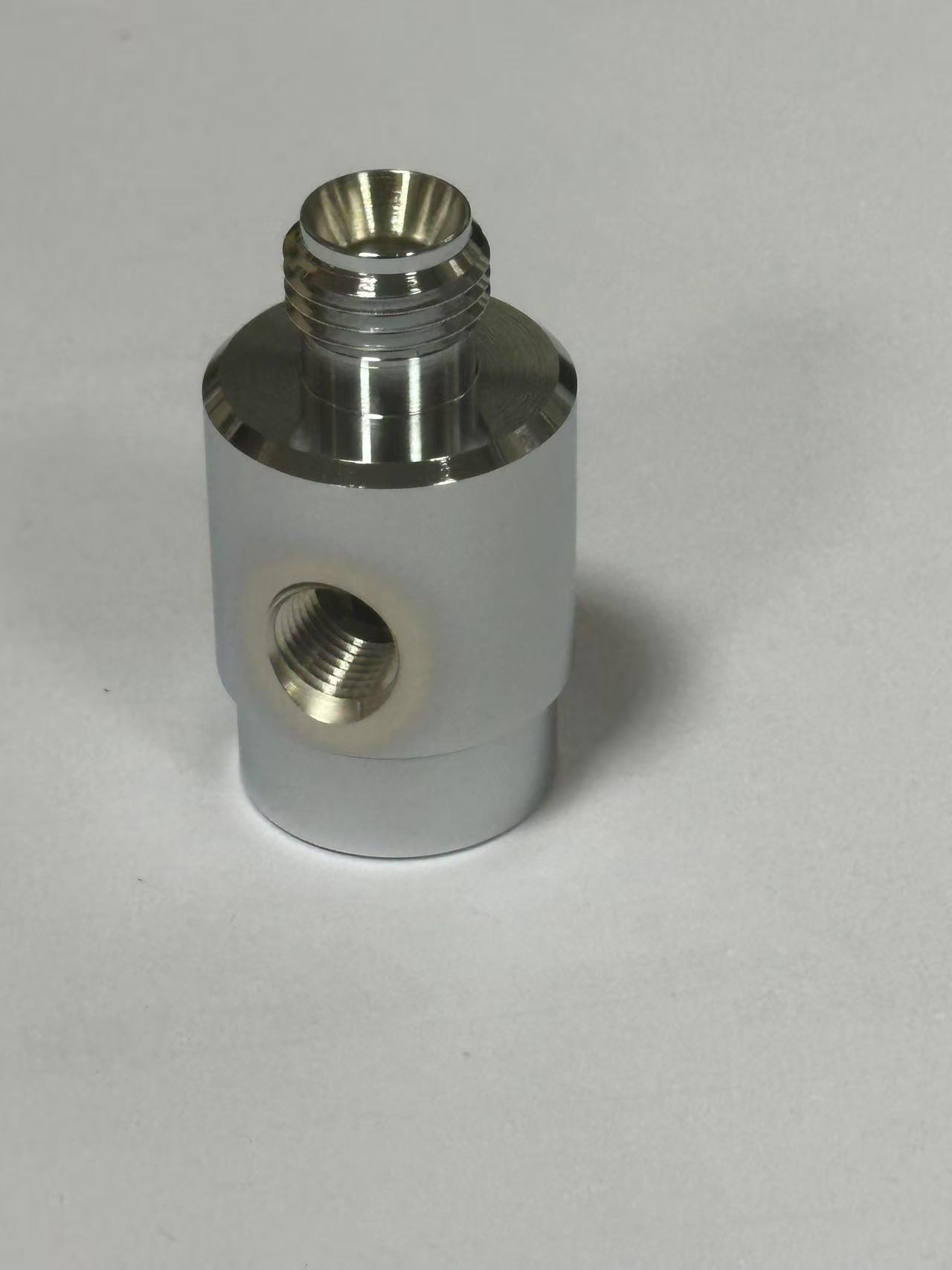

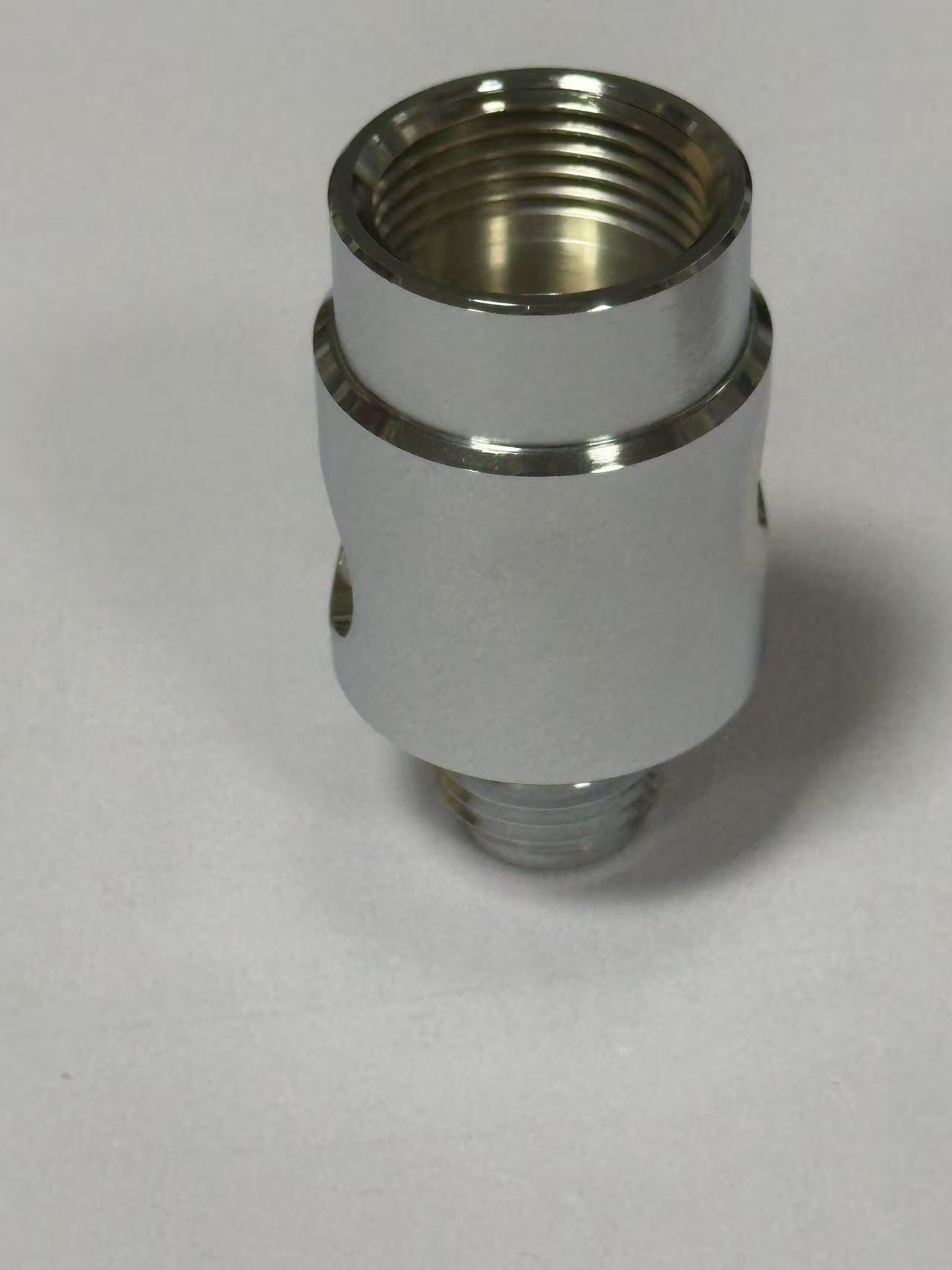

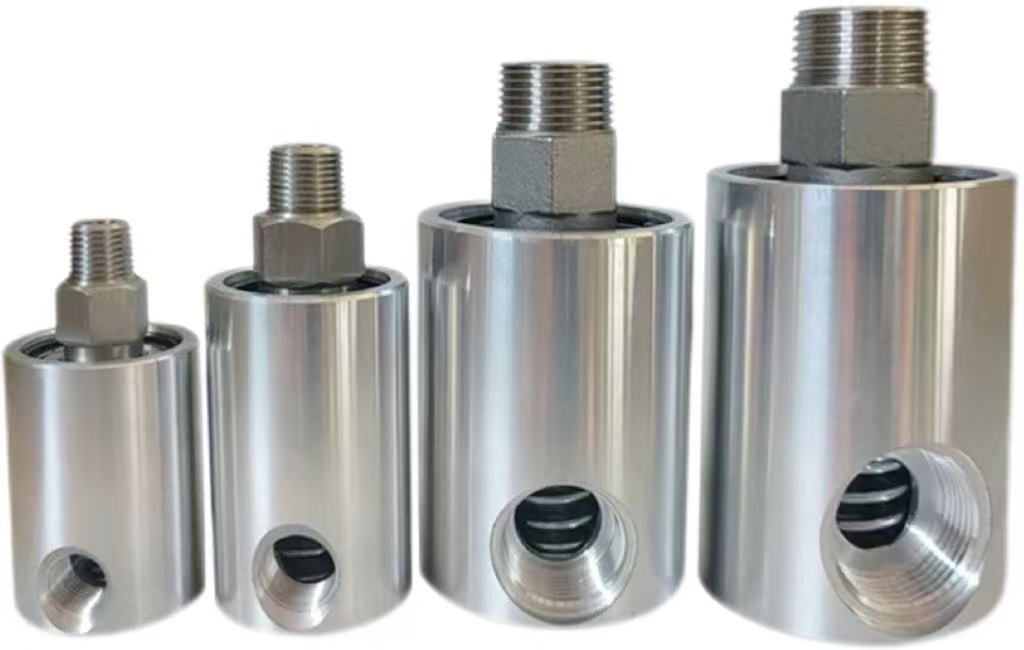

The VeloChrome™ Series 7000 represents the pinnacle of high-performance pneumatic rotary joint technology. Engineered specifically for applications demanding exceptional rotational speeds, minimal torque, absolute leak integrity, and long-term durability in challenging industrial environments, this chrome-plated rotary union sets a new benchmark. Utilizing advanced materials, precision manufacturing, and innovative multi-stage sealing, the Series 7000 delivers reliable, continuous transmission of compressed air (or other compatible gases) from a stationary supply line to rotating machinery. The signature hard chrome plating provides superior corrosion resistance, reduces friction, enhances wear resistance, and maintains critical dimensional tolerances even under extreme operating conditions. Whether powering high-RPM spindles, automated assembly lines, robotic tool changers, or demanding packaging equipment, the VeloChrome™ Series 7000 ensures optimal performance, minimal downtime, and extended service life.
Availability: | |
---|---|
Quantity: | |
1. Introduction & Market Need
The relentless drive for increased productivity in modern manufacturing, automation, and processing industries necessitates machinery components capable of operating at higher speeds, with greater precision, and enhanced reliability. Pneumatic systems are ubiquitous for their power, speed, cleanliness, and safety. A critical link in many dynamic pneumatic circuits is the rotary union (also known as a rotary joint, air swivel, or rotary coupling). Its function is deceptively simple: transfer compressed air (or other process gases) from a stationary source to a continuously rotating component without leakage or significant resistance (torque).
Traditional rotary unions often become the limiting factor when rotational speeds escalate. Friction-induced heat generation, seal degradation, increased torque demand, premature bearing failure, and leakage are common failures plaguing standard units pushed beyond their design limits. Furthermore, exposure to coolants, lubricants, washdown chemicals, and general atmospheric corrosion can drastically shorten component life. The VeloChrome™ Series 7000 was conceived to directly address these challenges, providing a robust, high-fidelity solution engineered explicitly for high-speed, low-torque, and corrosive environment applications.
2. Core Technology & Design Philosophy
The VeloChrome™ Series 7000 is built upon a foundation of precision engineering and material science:
* Ultra-Low Friction Bearings: Utilizes matched pairs of ultra-high-precision, pre-loaded angular contact ball bearings (ABEC 7 or equivalent). These bearings are specifically selected and configured to handle high radial and axial loads simultaneously while generating minimal frictional torque and heat, even at maximum rated speeds. Specialized low-drag grease or oil-mist lubrication options are available.
* Advanced Multi-Stage Sealing: The heart of the union's leak-free performance and longevity. Features a proprietary multi-barrier sealing system:
* Primary Dynamic Seal: Utilizes specialized, low-friction composite materials (often PTFE-based or polyimide-based compounds filled with wear-resistant additives like carbon, graphite, or bronze) engineered for minimal stick-slip and exceptional wear life at high surface speeds. Precision lapped sealing faces ensure optimal contact.
* Secondary Exclusion Seals: Prevents ingress of external contaminants (dust, dirt, coolant, moisture) that could compromise the primary seal or bearings. Often utilizes high-performance lip seals or labyrinth designs.
* Static Seals: High-grade elastomers (HNBR, FKM/Viton®) or metal seals ensure leak-free connections at the stationary and rotating ports.
* Hard Chrome Plating (Industrial Hard Chrome - IHC): The defining feature. Critical rotating surfaces (shaft, seal journals) undergo a controlled electroplating process depositing a thick, dense layer of chromium. Benefits include:
* Exceptional Hardness (65-72 HRC): Dramatically increases resistance to abrasive wear and scoring.
* Low Coefficient of Friction: Reduces drag and heat generation compared to unplated steel or brass.
* Superb Corrosion Resistance: Highly resistant to rust, oxidation, and many chemicals, solvents, and mild acids encountered in industrial settings. Ideal for humid, washdown, or mildly corrosive environments.
* Non-Galling Properties: Prevents adhesion/seizing under high load and speed.
* Smooth, Non-Porous Surface: Provides an ideal sealing surface, reducing leakage paths and improving seal life.
* Precision Machining & Balancing: All critical components are manufactured to extremely tight tolerances. The rotating assembly is dynamically balanced to minimize vibration at high speeds, ensuring smooth operation and preventing premature bearing/seal failure.
* Robust Housing: Typically machined from high-strength brass (for corrosion resistance and conductivity) or stainless steel (AISI 303/304/316 for maximum corrosion resistance). Provides structural integrity and protects internal components.
3. Key Features & Advantages
* Extremely High Rotational Speed: Capable of sustained operation at 10,000 - 12,000 RPM (model dependent), significantly exceeding conventional pneumatic rotary joints. Enables next-generation high-speed automation.
* Exceptionally Low Breakaway & Running Torque: Precision bearings and low-friction seals minimize resistance, reducing the power required to rotate the driven equipment and improving system responsiveness and efficiency. Typically < 0.05 Nm at rated speed.
* Zero Leakage Performance: Multi-stage sealing system ensures minimal internal leakage (often < 0.1 SCFM @ 100 PSI) and prevents external leakage, conserving compressed air (a major operating cost) and maintaining system pressure integrity.
* Superior Durability & Wear Resistance: Hard chrome plating dramatically extends the life of critical wear surfaces. Premium bearings and seals contribute to significantly longer Mean Time Between Failures (MTBF) compared to standard unions, reducing downtime and maintenance costs.
* Excellent Corrosion Resistance: Chrome plating provides outstanding protection against rust and corrosion from humidity, coolants, mild chemicals, and washdown procedures. Ideal for food & beverage, pharmaceutical, marine, and general manufacturing environments.
* Reduced Maintenance: Robust design and premium materials lead to extended service intervals. Often features a "maintenance-free" design within its operational lifespan under normal conditions.
* High Pressure Capability: Rated for operating pressures typically up to 150 PSI (10 bar), with some models capable of 250 PSI (17 bar) or higher. Suitable for most industrial pneumatic systems.
* Wide Temperature Range: Standard models typically operate effectively from -20°F to +200°F (-29°C to +93°C), with special configurations available for extended ranges.
* Compact & Lightweight Design: Engineered for space-constrained applications common in automation and robotics.
* Multiple Porting & Mounting Options: Available in various thread standards (NPT, BSPP, BSPT, Metric) and configurations (straight-through, 90-degree elbow, flange mount, through-hole) to simplify integration.
* Smooth Operation & Low Vibration: Precision balancing ensures quiet, vibration-free performance, critical for sensitive equipment and operator comfort.
4. Technical Specifications (Summary Table & Detailed Breakdown)
Table 1: VeloChrome™ Series 7000 Key Technical Specifications Overview
Dimension Symbol | Description | Value (mm) | Value (inches) | Tolerance |
---|---|---|---|---|
A | Overall Length | 80.0 mm | 3.15 in | ± 0.2 mm |
B | Body Diameter (Hex) | 22.0 mm | 0.87 in | ± 0.1 mm |
C | Body Diameter (Cylindrical) | 18.0 mm | 0.71 in | ± 0.1 mm |
D | Stationary Port Size (e.g., NPT) | 1/4"-18 NPT(F) | 1/4"-18 NPT(F) | Per ASME B1.20.1 |
E | Rotating Shaft Diameter | 10.0 mm | 0.394 in | h6 tolerance |
F | Rotating Port Size (e.g., NPT) | 1/4"-18 NPT(M) | 1/4"-18 NPT(M) | Per ASME B1.20.1 |
G | Mounting Wrench Flat Size | 22 mm | 7/8 in | |
H | Shaft Length (Threaded) | 15.0 mm | 0.59 in | ± 0.5 mm |
PCD (Flange Option) | Bolt Circle Diameter | - | - | |
W | Approximate Weight (Brass Body) | 0.25 kg | 0.55 lb |
